部署web服务器环境

# useradd  -u 2020 www
# mkdir /apps && cd /apps
# tar xvf jdk-8u181-linux-x64.tar.gz
# ln -sv /apps/jdk1.8.0_181/ /apps/jdk
# vim /etc/profile
export HISTTIMEFORMAT="%F %T whoami "
export JAVA_HOME=/apps/jdk
export CLASSPATH=.:$JAVA_HOME/jre/lib/rt.jar:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$PATH:$JAVA_HOME/bin
# source /etc/profile && java -version
# tar xvf    apache-tomcat-8.5.34.tar.gz
# ln -sv /apps/apache-tomcat-8.5.34 /apps/tomcat

准备tomcat启动脚本

# cp /root/tomcatd /etc/init.d/

web部署

部署web服务器并确认各web服务器访问正常：

# useradd -m  www -u 2020 -s /bin/bash  #ubuntu 系统上创建账户
# useradd www -u 2020 #centos 系统上创建账户
# mkdir /data/tomcat/tomcat_appdir -p  #保存web压缩包
# mkdir /data/tomcat/tomcat_webdir  #保存解压后的web目录
# mkdir /data/tomcat/tomcat_webapps #tomcat工具目录,存放上面目录中子目录的软链接
# mkdir /data/tomcat/tomcat_webdir/myapp #Java 代码目录
# ln -s /data/tomcat/tomcat_webdir/myapp/ /data/tomcat/tomcat_webapps/myapp
# vim /apps/tomcat/conf/server.xml
# echo 'myapp on <SERVER_IP>'  > /data/tomcat/tomcat_webdir/myapp/index.html
# chown -R www.www /apps/jdk/ /apps/tomcat/ /data/tomcat/
# tree /data/
/data/
├── lost+found
└── tomcat
    ├── tomcat_appdir
    ├── tomcat_webapps
    │   └── myapp -> /data/tomcat/tomcat_webdir/myapp/
    └── tomcat_webdir
        └── myapp
            └── index.html

7 directories, 1 file

配置tomcat配置文件

[root@tomcat ~]#vim /apps/tomcat/conf/server.xml
<Host name="localhost"  appBase="/data/tomcat/tomcat_webapps/"
            unpackWARs="false" autoDeploy="false">

启动tomcat

cat > /apps/tomcat/conf/tomcat.conf <<EOF
JAVA_HOME=/apps/jdk
JRE_HOME=/apps/jdk/jre
EOF

chown -R www.www /apps/tomcat/

cat > /lib/systemd/system/tomcat.service  <<EOF
[Unit]
Description=Tomcat
#After=syslog.target network.target remote-fs.target nss-lookup.target
After=syslog.target network.target

[Service]
Type=forking
EnvironmentFile=/apps/tomcat/conf/tomcat.conf
ExecStart=/apps/tomcat/bin/startup.sh
ExecStop=/apps/tomcat/bin/shutdown.sh
PrivateTmp=true
User=www
Group=www

[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable --now tomcat.service
# /etc/init.d/tomcat start

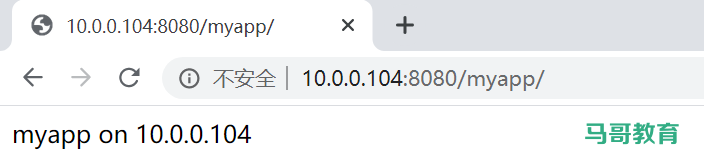

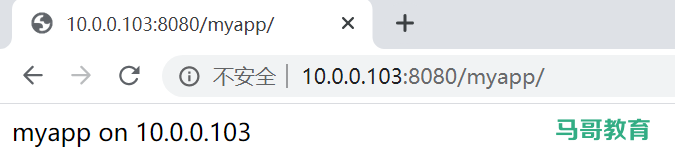

确认后端各tomcat的web服务器访问正常

部署web服务器环境插图
部署web服务器环境插图1

部署keepalived

# yum install libnfnetlink-devel libnfnetlink ipvsadm libnl libnl-devel libnl3 libnl3-devel lm_sensors-libs net-snmp-agent-libs net-snmp-libs open server openssh-clients openssl openssl-devel automake iproute

# cd keepalived-2.0.7 && ./configure --prefix=/usr/local/keepalived --disable-fwmark
# make && amke install
# # mkdir /usr/local/keepalived/etc/sysconfig –p && cp keepalived/etc/init.d/keepalived.rh.init /usr/local/keepalived/etc/sysconfig/keepalived

# cp keepalived/keepalived.service /usr/lib/systemd/system/
# mkdir /usr/local/keepalived/sbin && cp bin/keepalived /usr/local/keepalived/sbin/keepalived

# mkdir /etc/keepalived
# vim /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 80
priority 100
advert_int 1
unicast_src_ip 192.168.7.103
unicast_peer {
192.167.7.104
}
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.7.100 dev eth0 label  eth0:0
}
}

部署haproxy

# tar xvf haproxy-1.8.13.tar.gz
# cd haproxy-1.8.13
# make ARCH=x86_64 TARGET=linux2628 USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1 USE_SYSTEMD=1 USE_CPU_AFFINITY=1 PREFIX=/usr/local/haproxy

# make install PREFIX=/usr/local/haproxy
# vim /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target
[Service]
#支持多配置文件读取，类似于从侧面是实现配置文件的include功能。
ExecStartPre=/usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -f /etc/haproxy/conf -c -q
ExecStart=/usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -f /etc/haproxy/conf -p /run/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID
[Install]
WantedBy=multi-user.target
# mkdir /etc/haproxy

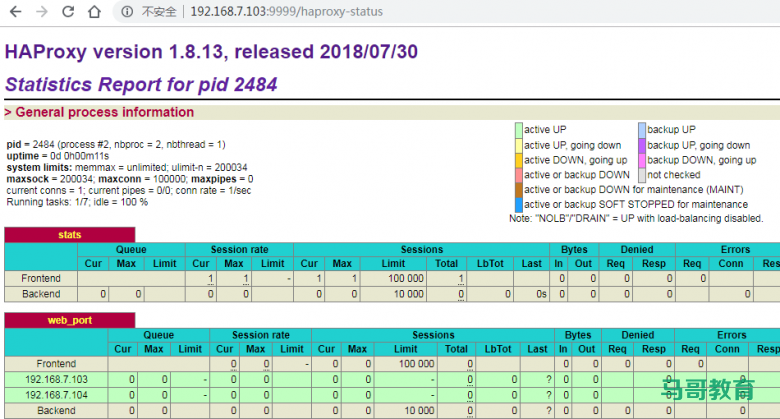

测试访问

测试haproxy反向代理web服务器：

编辑本机hosts文件，将myapp.web.com解析到对应的IP负载IP：

C:\Windows\System32\drivers\etc\hosts
192.168.7.100 myapp.web.com

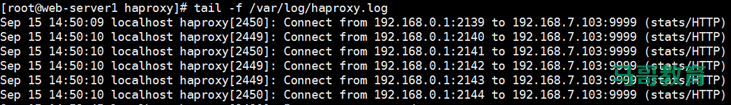

记录HAProxy访问日志：

# vim /etc/rsyslog.conf：
14 # Provides UDP syslog reception
15 $ModLoad imudp #去掉注释
16 $UDPServerRun 514 #去掉注释
18 # Provides TCP syslog reception
19 $ModLoad imtcp #去掉注释
20 $InputTCPServerRun 514 #去掉注释
93 local3.* /var/log/haproxy.log

# systemctl restart rsyslog
log 127.0.0.1 local3 info #global部分
listen web_port
bind 0.0.0.0:80
mode http
log global
option httplog
server 192.168.7.103 192.168.7.103:8080 check inter 3000 fall 2 rise 5
server 192.168.7.104 192.168.7.104:8080 check inter 3000 fall 2 rise 5

部署web服务器环境插图2
