jenkins服务器部署扫描器：sonar-scanner

[root@jenkins-ubuntu ~]#cd /usr/local/src

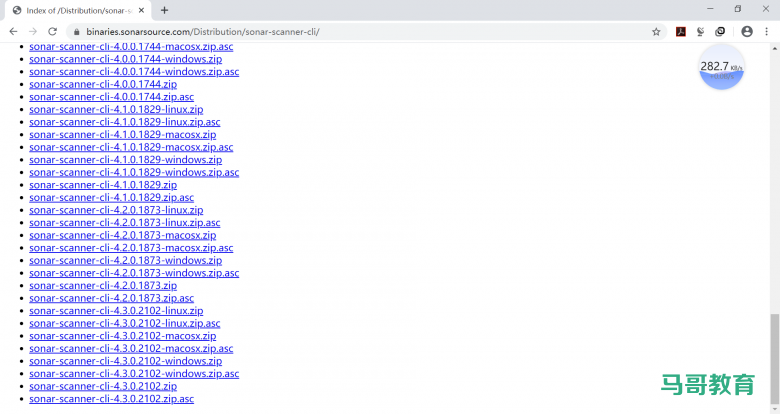

[root@jenkins-ubuntu src]#wget https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-4.3.0.2102-linux.zip
[root@jenkins-ubuntu src]#unzip sonar-scanner-cli-4.3.0.2102-linux.zip
[root@jenkins-ubuntu src]#ln -s /usr/local/src/sonar-scanner-4.3.0.2102-linux/ /usr/local/sonar-scanner
[root@jenkins-ubuntu ~]#vim /usr/local/sonar-scanner/conf/sonar-scanner.properties
#指向sonarqube服务器的地址
sonar.host.url=http://10.0.0.103:9000
sonar.sourceEncoding=UTF-8

准备测试代码

[root@jenkins-ubuntu ~]#unzip sonar-examples-master.zip
[root@jenkins-ubuntu ~]# cd sonar-examples-master/projects/languages/php/php-sonar-runner
[root@jenkins-ubuntu php-sonar-runner]#pwd
/root/sonar-examples-master/projects/languages/php/php-sonar-runner
[root@jenkins-ubuntu php-sonar-runner]#ll
total 28
drwxr-xr-x 4 root root 4096 Mar 14 12:06 ./
drwxr-xr-x 4 root root 4096 Jul 25  2016 ../
-rw-r--r-- 1 root root  453 Jul 25  2016 README.md
drwxr-xr-x 2 root root 4096 Mar 14 12:07 .scannerwork/
-rw-r--r-- 1 root root  331 Jul 25  2016 sonar-project.properties
drwxr-xr-x 2 root root 4096 Jul 25  2016 src/
-rw-r--r-- 1 root root  272 Jul 25  2016 validation.txt
[root@jenkins-ubuntu php-sonar-runner]#cat sonar-project.properties #以下为默认生成的配置文件
# Required metadata
sonar.projectKey=org.sonarqube:php-simple-sq-scanner #自定义项目key

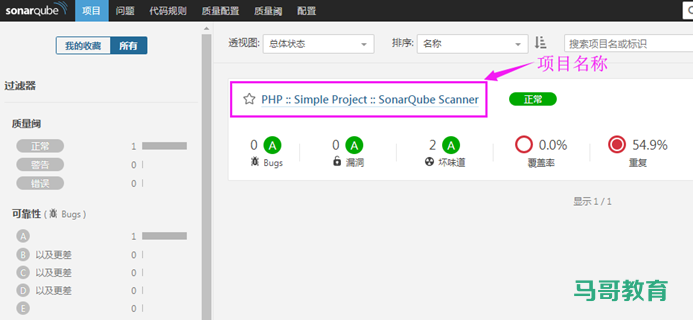

sonar.projectName=PHP :: Simple Project :: SonarQube Scanner #项目名称，会显示在web
sonar.projectVersion=1.0  #项目版本

# Comma-separated paths to directories with sources (required)
sonar.sources=src   #源代码目录

# Language
sonar.language=php  #代码语言类型

# Encoding of the source files
sonar.sourceEncoding=UTF-8 #编码格式

在源代码目录执行扫描

手动在当前项目代码目录执行扫描，以下是扫描过程的提示信息，扫描的配置文件sonar-project.propertie每个项目都要有

[root@jenkins-ubuntu php-sonar-runner]#pwd
/root/sonar-examples-master/projects/languages/php/php-sonar-runner

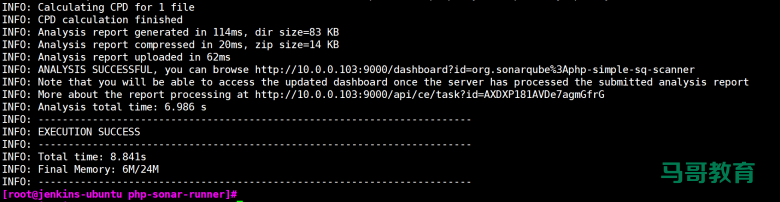

[root@jenkins-ubuntu php-sonar-runner]#/usr/local/sonar-scanner/bin/sonar-scanner
#在源码所有目录下执行上面命令，可以看到如下显示

jenkins服务器部署扫描器：sonar-scanner插图1
