实战案例:CentOS 7 实现基于cobbler实现自动化安装

环境准备

两台主机

一台主机:CentOS 7.7 充当Cobbler,http,dhcp,tftp服务器,并关闭防火墙和SELinux

一台主机:充当测试机,用于实现自动化安装Linux系统

网络要求:关闭Vmware软件中的NAT模式中的DHCP服务,两个主机网卡基于NAT模式

安装相关包并启动服务
[root@centos7 ~]#yum install cobbler dhcp
[root@centos7 ~]#systemctl enable --now cobblerd httpd tftp dhcpd
修改cobbler相关的配置
[root@centos7 ~]#cobbler check
The following are potential configuration items that you may want to fix:

1 : The 'server' field in /etc/cobbler/settings must be set to something other than localhost, or kickstarting features will not work.  This should be a resolvable hostname or IP for the boot server as reachable by all machines that will use it.
2 : For PXE to be functional, the 'next_server' field in /etc/cobbler/settings must be set to something other than 127.0.0.1, and should match the IP of the boot server on the PXE network.
3 : change 'disable' to 'no' in /etc/xinetd.d/tftp
4 : Some network boot-loaders are missing from /var/lib/cobbler/loaders, you may run 'cobbler get-loaders' to download them, or, if you only want to handle x86/x86_64 netbooting, you may ensure that you have installed a *recent* version of the syslinux package installed and can ignore this message entirely.  Files in this directory, should you want to support all architectures, should include pxelinux.0, menu.c32, elilo.efi, and yaboot. The 'cobbler get-loaders' command is the easiest way to resolve these requirements.
5 : enable and start rsyncd.service with systemctl
6 : debmirror package is not installed, it will be required to manage debian deployments and repositories
7 : ksvalidator was not found, install pykickstart
8 : The default password used by the sample templates for newly installed machines (default_password_crypted in /etc/cobbler/settings) is still set to 'cobbler' and should be changed, try: "openssl passwd -1 -salt 'random-phrase-here' 'your-password-here'" to generate new one
9 : fencing tools were not found, and are required to use the (optional) power management features. install cman or fence-agents to use them

#根据以上提示,只需要做1,2,8这三项即可,修改下面四行
[root@centos7 ~]#vim  /etc/cobbler/settings
default_password_crypted: "1gEc7ilpP$pg5iSOj/mlxTxEslhRvyp/"
next_server:< tftp服务器的 IP 地址>
server:<cobbler服务器的 IP 地址>
manage_dhcp:1  #设置为1,表示通过cobbler生成dhcpd.conf配置文件

[root@centos7 ~]#systemctl restart cobblerd
[root@centos7 ~]#cobbler sync
下载启动的相关文件
[root@centos7 ~]#cobbler get-loaders
task started: 2020-02-10_163111_get_loaders
task started (id=Download Bootloader Content, time=Mon Feb 10 16:31:11 2020)
downloading https://cobbler.github.io/loaders/README to /var/lib/cobbler/loaders/README
downloading https://cobbler.github.io/loaders/COPYING.elilo to /var/lib/cobbler/loaders/COPYING.elilo
downloading https://cobbler.github.io/loaders/COPYING.yaboot to /var/lib/cobbler/loaders/COPYING.yaboot
downloading https://cobbler.github.io/loaders/COPYING.syslinux to /var/lib/cobbler/loaders/COPYING.syslinux
downloading https://cobbler.github.io/loaders/elilo-3.8-ia64.efi to /var/lib/cobbler/loaders/elilo-ia64.efi
downloading https://cobbler.github.io/loaders/yaboot-1.3.17 to /var/lib/cobbler/loaders/yaboot
downloading https://cobbler.github.io/loaders/pxelinux.0-3.86 to /var/lib/cobbler/loaders/pxelinux.0
downloading https://cobbler.github.io/loaders/menu.c32-3.86 to /var/lib/cobbler/loaders/menu.c32
downloading https://cobbler.github.io/loaders/grub-0.97-x86.efi to /var/lib/cobbler/loaders/grub-x86.efi
downloading https://cobbler.github.io/loaders/grub-0.97-x86_64.efi to /var/lib/cobbler/loaders/grub-x86_64.efi
*** TASK COMPLETE ***
[root@centos7 ~]#ls /var/lib/cobbler/loaders
COPYING.elilo     COPYING.yaboot  grub-x86_64.efi  menu.c32    README
COPYING.syslinux  elilo-ia64.efi  grub-x86.efi     pxelinux.0  yaboot
[root@centos7 ~]#tree /var/lib/tftpboot/
/var/lib/tftpboot/
├── boot
├── etc
├── grub
├── images
├── images2
├── ppc
├── pxelinux.cfg
└── s390x

8 directories, 0 files
[root@centos7 ~]#cobbler sync
task started: 2020-02-10_163219_sync
task started (id=Sync, time=Mon Feb 10 16:32:19 2020)
running pre-sync triggers
cleaning trees
removing: /var/lib/tftpboot/grub/images
copying bootloaders
trying hardlink /var/lib/cobbler/loaders/pxelinux.0 -> /var/lib/tftpboot/pxelinux.0
trying hardlink /var/lib/cobbler/loaders/menu.c32 -> /var/lib/tftpboot/menu.c32
trying hardlink /var/lib/cobbler/loaders/yaboot -> /var/lib/tftpboot/yaboot
trying hardlink /usr/share/syslinux/memdisk -> /var/lib/tftpboot/memdisk
trying hardlink /var/lib/cobbler/loaders/grub-x86.efi -> /var/lib/tftpboot/grub/grub-x86.efi
trying hardlink /var/lib/cobbler/loaders/grub-x86_64.efi -> /var/lib/tftpboot/grub/grub-x86_64.efi
copying distros to tftpboot
copying images
generating PXE configuration files
generating PXE menu structure
rendering TFTPD files
generating /etc/xinetd.d/tftp
cleaning link caches
running post-sync triggers
running python triggers from /var/lib/cobbler/triggers/sync/post/*
running python trigger cobbler.modules.sync_post_restart_services
running shell triggers from /var/lib/cobbler/triggers/sync/post/*
running python triggers from /var/lib/cobbler/triggers/change/*
running python trigger cobbler.modules.manage_genders
running python trigger cobbler.modules.scm_track
running shell triggers from /var/lib/cobbler/triggers/change/*
*** TASK COMPLETE ***
[root@centos7 ~]#tree /var/lib/tftpboot/
/var/lib/tftpboot/
├── boot
│   └── grub
│       └── menu.lst
├── etc
├── grub
│   ├── efidefault
│   ├── grub-x86_64.efi
│   ├── grub-x86.efi
│   └── images -> ../images
├── images
├── images2
├── memdisk
├── menu.c32
├── ppc
├── pxelinux.0
├── pxelinux.cfg
│   └── default
├── s390x
│   └── profile_list
└── yaboot

10 directories, 10 files
实现dhcp服务
#修改dhcp的模版文件下面的行,用来生成dhcp的配置文件
[root@centos7 ~]#vim /etc/cobbler/dhcp.template
subnet 192.168.100.0 netmask 255.255.255.0 {
     option routers             192.168.100.1;
     option domain-name-servers 180.76.76.76,223.6.6.6;
     option subnet-mask         255.255.255.0;
     range  dynamic-bootp       192.168.100.1 192.168.100.200;

[root@centos7 ~]#cobbler sync
[root@centos7 ~]#systemctl start dhcpd
修改菜单的标题信息
[root@centos7 ~]#vim /etc/cobbler/pxe/pxedefault.template
MENU TITLE Cobbler | http://www.magedu.com/

[root@centos7 ~]#cobbler sync
[root@centos7 ~]#cat /var/lib/tftpboot/pxelinux.cfg/default
DEFAULT menu
PROMPT 0
MENU TITLE Cobbler | http://www.magedu.com/
TIMEOUT 200
TOTALTIMEOUT 6000
ONTIMEOUT local

LABEL local
        MENU LABEL (local)
        MENU DEFAULT
        LOCALBOOT -1

MENU end
导入CentOS系统的安装文件,生成相应的YUM源
[root@centos7 ~]#cobbler import --name=centos-8.1-x86_64 --path=/misc/cd --arch=x86_64
[root@centos7 ~]#mount /dev/sr1 /mnt
mount: /dev/sr1 is write-protected, mounting read-only
[root@centos7 ~]#cobbler import --name=centos-7.7-x86_64 --path=/mnt --arch=x86_64
[root@centos7 ~]#du -sh /var/www/cobbler/ks_mirror/*
11G /var/www/cobbler/ks_mirror/centos-7.7-x86_64
7.2G    /var/www/cobbler/ks_mirror/centos-8.1-x86_64
12K /var/www/cobbler/ks_mirror/config
[root@centos7 ~]#cobbler distro list
   centos-7.7-x86_64
   centos-8.1-x86_64

[root@centos7 ~]#cobbler profile list
   centos-7.7-x86_64
   centos-8.1-x86_64

#默认生成的是最小化安装

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图

准备 kickstart文件,并关联至指定的YUM源
[root@centos7 ~]#vim /var/lib/cobbler/kickstarts/centos8.cfg
[root@centos7 ~]#cat /var/lib/cobbler/kickstarts/centos8.cfg
ignoredisk --only-use=sda
zerombr
text
reboot
clearpart --all --initlabel
selinux --disabled
firewall --disabled
url --url=tree   #注意此行必须指定
keyboard --vckeymap=us --xlayouts='us'
lang en_US.UTF-8
network  --bootproto=dhcp --device=ens160 --ipv6=auto --activate
network  --hostname=centos8.magedu.com
rootpw --iscrypted6nOPs5JTMlP4mhQeWR/o62B6SXAh3RR.zrZ3U0X4xYX9/u5nSLrR/vqCB6kdO2XFfMk2a4yAgrHJQpXK/e4jzRb0jiLBv2nFMXaBjB/
firstboot --enable
skipx
services --disabled="chronyd"
timezone Asia/Shanghai --isUtc --nontp
user --name=wang --password=6oUfb/02CWfLb5l8f$sgEZeR7c7DpqfpmFDH6huSmDbW1XQNR4qKl2EPns.gOXqlnAIgv9pTogtFVaDtEpMOC.SWXKYqxfVtd9MCwxb1 --iscrypted --gecos="wang"
part / --fstype="xfs" --ondisk=sda --size=102400
part /data --fstype="xfs" --ondisk=sda --size=51200
part swap --fstype="swap" --ondisk=sda --size=2048
part /boot --fstype="ext4" --ondisk=sda --size=1024
%packages
@^minimal-environment
kexec-tools
%end
%addon com_redhat_kdump --enable --reserve-mb='auto'
%end
%anaconda
pwpolicy root --minlen=6 --minquality=1 --notstrict --nochanges --notempty
pwpolicy user --minlen=6 --minquality=1 --notstrict --nochanges --emptyok
pwpolicy luks --minlen=6 --minquality=1 --notstrict --nochanges --notempty
%end

#将kickstart文件,关联指定的YUM源和生成菜单列表
[root@centos7 ~]#cobbler profile add --name=CentOS-8.1_test --distro=CentOS-8.1-x86_64 --kickstart= /var/lib/cobbler/kickstarts/centos8.cfg
[root@centos7 ~]#cobbler profile add --name=CentOS-7.7_test --distro=CentOS-7.7-x86_64 --kickstart= /var/lib/cobbler/kickstarts/centos7.cfg

#删除默认生成的菜单
[root@centos7 ~]#cobbler profile remove --name=centos-8.1-x86_64
[root@centos7 ~]#cobbler profile remove --name=centos-7.7-x86_64

[root@centos7 ~]#cobbler profile list
   CentOS-7.7_test
   CentOS-8.1_test

#删除默认的菜单列表
[root@centos7 ~]#cobbler profile remove --name=CentOS8.0-x86_64

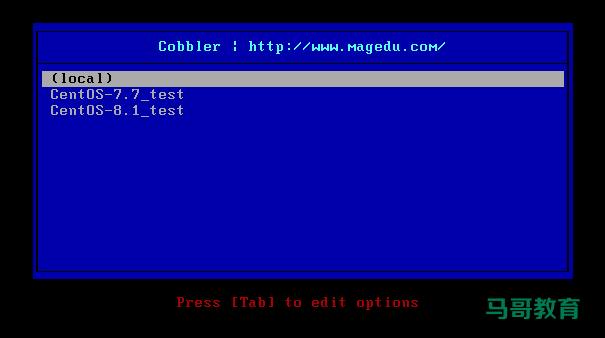

测试客户端基于Cobbler实现自动安装

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(1)

实现cobbler 的web管理
[root@centos7 ~]#yum -y install  cobbler-web
[root@centos7 ~]#systemctl restart httpd

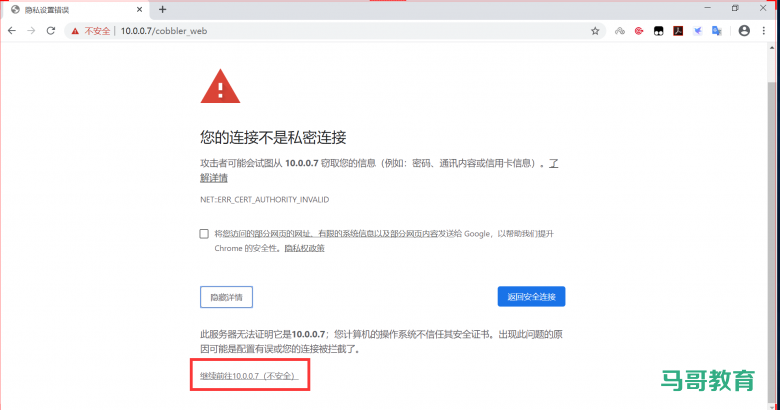

通过浏览器访问下面地址:https://cobblerserver/cobbler_web

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(2)

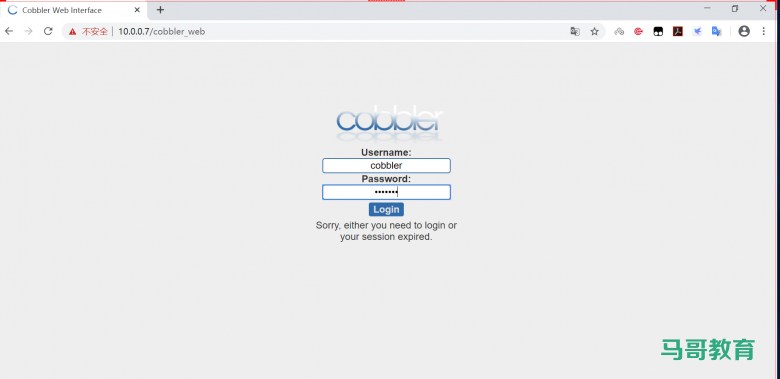

用户名:cobbler,默认密码:cobbler

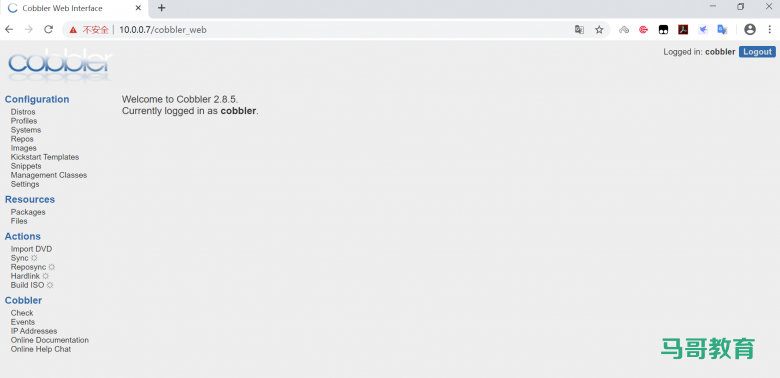

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(3)

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(4)

创建cobbler的自定义的web用户
[root@centos7 ~]#cat /etc/cobbler/users.digest
cobbler:Cobbler:a2d6bae81669d707b72c0bd9806e01f3
[root@centos7 ~]#htdigest -c /etc/cobbler/users.digest Cobbler admin
Adding password for admin in realm Cobbler.
New password:
Re-type new password:
[root@centos7 ~]#cat /etc/cobbler/users.digest
admin:Cobbler:461941848a17e1b412f94c100a79bf75
3
[root@centos7 ~]#htdigest  /etc/cobbler/users.digest Cobbler admin2
Adding user admin2 in realm Cobbler
New password:
Re-type new password:
[root@centos7 ~]#cat /etc/cobbler/users.digest
admin:Cobbler:461941848a17e1b412f94c100a79bf75
3
admin2:Cobbler:8e3ab6cc196fac11dcf0512c200a672f

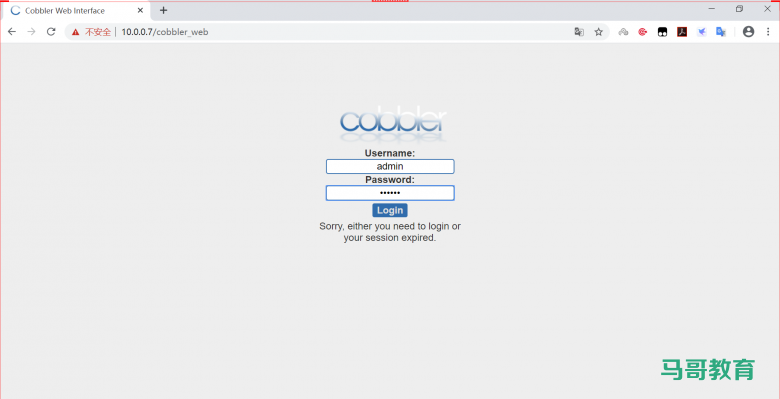

使用上面命令创建的用户登录web界面

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(5)

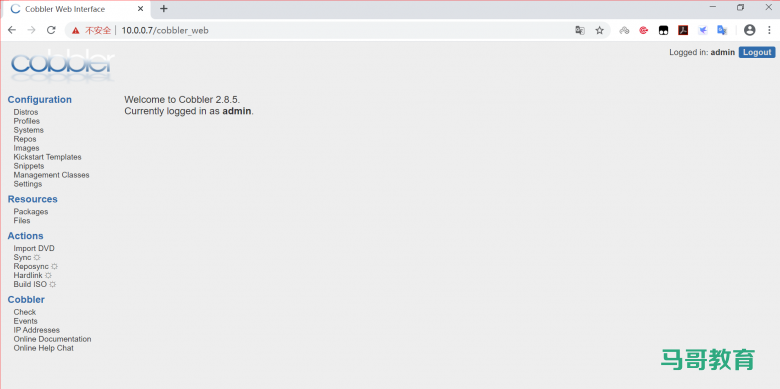

登录成功后,可以看到下面界面

实战案例:CentOS 7 实现基于cobbler实现自动化安装插图(6)
