编译安装HAProxy

编译安装HAProxy 2.0 LTS版本,更多源码包下载地址:http://www.haproxy.org/download/

解决lua环境

HAProxy 支持基于lua实现功能扩展,lua是一种小巧的脚本语言,于1993年由巴西里约热内卢天主教大学(Pontifical Catholic University of Rio de Janeiro)里的一个研究小组开发,其设计目的是为了嵌入应用程序中,从而为应用程序提供灵活的扩展和定制功能。

Lua 官网:www.lua.org

Lua 应用场景

  • 游戏开发
  • 独立应用脚本
  • Web 应用脚本
  • 扩展和数据库插件,如MySQL Proxy
  • 安全系统,如入侵检测系统

Centos 基础环境

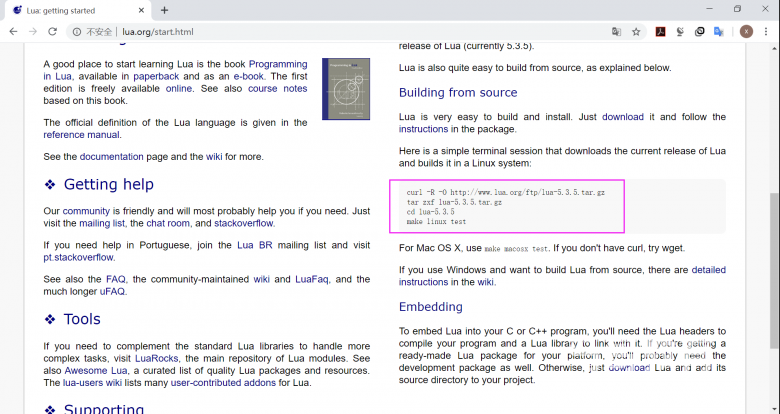

参考链接:http://www.lua.org/start.html

HAProxy-编译安装插图

由于CentOS7 之前版本自带的lua版本比较低并不符合HAProxy要求的lua最低版本(5.3)的要求,因此需要编译安装较新版本的lua环境,然后才能编译安装HAProxy,过程如下:

#当前系统版本
[root@centos7 ~]#lua -v
Lua 5.1.4  Copyright (C) 1994-2008 Lua.org, PUC-Rio

#安装基础命令及编译依赖环境
[root@centos7 ~]# yum install gcc readline-devel
[root@centos7 ~]# wget http://www.lua.org/ftp/lua-5.3.5.tar.gz
[root@centos7 ~]# tar xvf  lua-5.3.5.tar.gz -C /usr/local/src
[root@centos7 ~]# cd /usr/local/src/lua-5.3.5
[root@centos7 lua-5.3.5]# make linux test

#查看编译安装的版本
[root@centos7 lua-5.3.5]#src/lua -v
Lua 5.3.5  Copyright (C) 1994-2018 Lua.org, PUC-Rio

Ubuntu 基础环境

#安装基础命令及编译依赖环境
# apt  install gcc iproute2  ntpdate  tcpdump telnet traceroute nfs-kernel-server nfs-common  lrzsz tree  openssl libssl-dev libpcre3 libpcre3-dev zlib1g-dev  openssh-server  libreadline-dev libsystemd-dev

# cd /usr/local/src
# wget http://www.lua.org/ftp/lua-5.3.5.tar.gz
# tar xvf  lua-5.3.5.tar.gz
# cd lua-5.3.5
# make linux test

# pwd
/usr/local/src/lua-5.3.5
# ./src/lua -v
Lua 5.3.5  Copyright (C) 1994-2018 Lua.org, PUC-Rio

或安装系统自带的lua
# apt install  lua5.3=5.3.3-1ubuntu0.18.04.1
# lua5.3  -v
Lua 5.3.3  Copyright (C) 1994-2016 Lua.org, PUC-Rio

编译安装HAProxy

#HAProxy  1.8及1.9版本编译参数:
make  ARCH=x86_64 TARGET=linux2628 USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1 USE_SYSTEMD=1  USE_CPU_AFFINITY=1  PREFIX=/usr/local/haproxy

#HAProxy 2.0以上版本编译参数:
[root@centos7 ~]#yum -y install gcc openssl-devel pcre-devel systemd-devel
[root@centos7 ~]#tar xvf haproxy-2.1.3.tar.gz  -C /usr/local/src
[root@centos7 ~]#cd /usr/local/src/haproxy-2.1.3/
[root@centos7 haproxy-2.1.3]#cat README
[root@centos7 haproxy-2.1.3]#ll Makefile
-rw-rw-r-- 1 root root 40812 Feb 12 23:18 Makefile
[root@centos7 haproxy-2.1.3]#cat INSTALL

#参考INSTALL文件进行编译安装
[root@centos7 haproxy-2.1.3]#make  ARCH=x86_64 TARGET=linux-glibc  USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1  USE_SYSTEMD=1  USE_LUA=1 LUA_INC=/usr/local/src/lua-5.3.5/src/  LUA_LIB=/usr/local/src/lua-5.3.5/src/
[root@centos7 haproxy-2.1.3]# make install PREFIX=/apps/haproxy
[root@centos7 haproxy-2.1.3]#ln -s /apps/haproxy/sbin/haproxy /usr/sbin/

#查看生成的文件
[root@centos7 haproxy-2.1.3]#tree /apps/haproxy/
/apps/haproxy/
├── doc
│   └── haproxy
│       ├── 51Degrees-device-detection.txt
│       ├── architecture.txt
│       ├── close-options.txt
│       ├── configuration.txt
│       ├── cookie-options.txt
│       ├── DeviceAtlas-device-detection.txt
│       ├── intro.txt
│       ├── linux-syn-cookies.txt
│       ├── lua.txt
│       ├── management.txt
│       ├── netscaler-client-ip-insertion-protocol.txt
│       ├── network-namespaces.txt
│       ├── peers.txt
│       ├── peers-v2.0.txt
│       ├── proxy-protocol.txt
│       ├── regression-testing.txt
│       ├── seamless_reload.txt
│       ├── SOCKS4.protocol.txt
│       ├── SPOE.txt
│       └── WURFL-device-detection.txt
├── sbin
│   └── haproxy
└── share
    └── man
        └── man1
            └── haproxy.1

6 directories, 22 files

验证HAProxy版本

#验证HAProxy版本:
[root@centos7 ~]#which haproxy
/usr/sbin/haproxy
[root@centos7 ~]#haproxy  -v
HA-Proxy version 2.1.3 2020/02/12 - https://haproxy.org/
Status: stable branch - will stop receiving fixes around Q1 2021.
Known bugs: http://www.haproxy.org/bugs/bugs-2.1.3.html

[root@centos7 ~]#haproxy  -v
HA-Proxy version 2.0.14 2020/04/02 - https://haproxy.org/
[root@centos7 ~]#haproxy  -V
HA-Proxy version 2.0.14 2020/04/02 - https://haproxy.org/
Usage : haproxy [-f <cfgfile|cfgdir>]* [ -vdVD ] [ -n <maxconn> ] [ -N <maxpconn> ]
        [ -p <pidfile> ] [ -m <max megs> ] [ -C <dir> ] [-- <cfgfile>*]
        -v displays version ; -vv shows known build options.
        -d enters debug mode ; -db only disables background mode.
        -dM[<byte>] poisons memory with <byte> (defaults to 0x50)
        -V enters verbose mode (disables quiet mode)
        -D goes daemon ; -C changes to <dir> before loading files.
        -W master-worker mode.
        -Ws master-worker mode with systemd notify support.
        -q quiet mode : don't display messages
        -c check mode : only check config files and exit
        -n sets the maximum total # of connections (uses ulimit -n)
        -m limits the usable amount of memory (in MB)
        -N sets the default, per-proxy maximum # of connections (0)
        -L set local peer name (default to hostname)
        -p writes pids of all children to this file
        -de disables epoll() usage even when available
        -dp disables poll() usage even when available
        -dS disables splice usage (broken on old kernels)
        -dG disables getaddrinfo() usage
        -dR disables SO_REUSEPORT usage
        -dr ignores server address resolution failures
        -dV disables SSL verify on servers side
        -sf/-st [pid ]* finishes/terminates old pids.
        -x <unix_socket> get listening sockets from a unix socket
        -S <bind>[,<bind options>...] new master CLI

[root@centos7 ~]#haproxy  -vv
HA-Proxy version 2.1.3 2020/02/12 - https://haproxy.org/
Status: stable branch - will stop receiving fixes around Q1 2021.
Known bugs: http://www.haproxy.org/bugs/bugs-2.1.3.html
Build options :
  TARGET  = linux-glibc
  CPU     = generic
  CC      = gcc
  CFLAGS  = -m64 -march=x86-64 -O2 -g -fno-strict-aliasing -Wdeclaration-after-statement -fwrapv -Wno-unused-label -Wno-sign-compare -Wno-unused-parameter -Wno-old-style-declaration -Wno-ignored-qualifiers -Wno-clobbered -Wno-missing-field-initializers -Wtype-limits
  OPTIONS = USE_PCRE=1 USE_OPENSSL=1 USE_LUA=1 USE_ZLIB=1 USE_SYSTEMD=1

Feature list : +EPOLL -KQUEUE -MY_EPOLL -MY_SPLICE +NETFILTER +PCRE -PCRE_JIT -PCRE2 -PCRE2_JIT +POLL -PRIVATE_CACHE +THREAD -PTHREAD_PSHARED -REGPARM -STATIC_PCRE -STATIC_PCRE2 +TPROXY +LINUX_TPROXY +LINUX_SPLICE +LIBCRYPT +CRYPT_H -VSYSCALL +GETADDRINFO +OPENSSL +LUA +FUTEX +ACCEPT4 -MY_ACCEPT4 +ZLIB -SLZ +CPU_AFFINITY +TFO +NS +DL +RT -DEVICEATLAS -51DEGREES -WURFL +SYSTEMD -OBSOLETE_LINKER +PRCTL +THREAD_DUMP -EVPORTS

Default settings :
  bufsize = 16384, maxrewrite = 1024, maxpollevents = 200

Built with multi-threading support (MAX_THREADS=64, default=4).
Built with OpenSSL version : OpenSSL 1.0.2k-fips  26 Jan 2017
Running on OpenSSL version : OpenSSL 1.0.2k-fips  26 Jan 2017
OpenSSL library supports TLS extensions : yes
OpenSSL library supports SNI : yes
OpenSSL library supports : SSLv3 TLSv1.0 TLSv1.1 TLSv1.2
Built with Lua version : Lua 5.3.5
Built with network namespace support.
Built with transparent proxy support using: IP_TRANSPARENT IPV6_TRANSPARENT IP_FREEBIND
Built with PCRE version : 8.32 2012-11-30
Running on PCRE version : 8.32 2012-11-30
PCRE library supports JIT : no (USE_PCRE_JIT not set)
Encrypted password support via crypt(3): yes
Built with zlib version : 1.2.7
Running on zlib version : 1.2.7
Compression algorithms supported : identity("identity"), deflate("deflate"), raw-deflate("deflate"), gzip("gzip")

Available polling systems :
      epoll : pref=300,  test result OK
       poll : pref=200,  test result OK
     select : pref=150,  test result OK
Total: 3 (3 usable), will use epoll.

Available multiplexer protocols :
(protocols marked as <default> cannot be specified using 'proto' keyword)
              h2 : mode=HTTP       side=FE|BE     mux=H2
            fcgi : mode=HTTP       side=BE        mux=FCGI
       <default> : mode=HTTP       side=FE|BE     mux=H1
       <default> : mode=TCP        side=FE|BE     mux=PASS

Available services : none

Available filters :
    [SPOE] spoe
    [CACHE] cache
    [FCGI] fcgi-app
    [TRACE] trace
    [COMP] compression

HAProxy启动脚本

[root@centos7 ~]#cat  /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg  -c -q
ExecStart=/usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID

[Install]
WantedBy=multi-user.target

#默认缺少配置文件,无法启动
[root@centos7 ~]#systemctl daemon-reload
[root@centos7 ~]#systemctl start haproxy
Job for haproxy.service failed because the control process exited with error code. See "systemctl status haproxy.service" and "journalctl -xe" for details.

[root@centos7 ~]#tail /var/log/messages
Mar 30 22:28:50 centos7 systemd: haproxy.service: control process exited, code=exited status=1
Mar 30 22:28:50 centos7 systemd: Failed to start HAProxy Load Balancer.
Mar 30 22:28:50 centos7 systemd: Unit haproxy.service entered failed state.
Mar 30 22:28:50 centos7 systemd: haproxy.service failed.
Mar 30 22:28:54 centos7 systemd: Starting HAProxy Load Balancer...
Mar 30 22:28:54 centos7 haproxy: [ALERT] 089/222854 (28223) : Cannot open configuration file/directory /etc/haproxy/haproxy.cfg : No such file or directory
Mar 30 22:28:54 centos7 systemd: haproxy.service: control process exited, code=exited status=1
Mar 30 22:28:54 centos7 systemd: Failed to start HAProxy Load Balancer.
Mar 30 22:28:54 centos7 systemd: Unit haproxy.service entered failed state.
Mar 30 22:28:54 centos7 systemd: haproxy.service failed.

配置文件

#查看配置文件范例
[root@centos7 ~]#tree /usr/local/src/haproxy-2.1.3/examples/
/usr/local/src/haproxy-2.1.3/examples/
├── acl-content-sw.cfg
├── content-sw-sample.cfg
├── errorfiles
│   ├── 400.http
│   ├── 403.http
│   ├── 408.http
│   ├── 500.http
│   ├── 502.http
│   ├── 503.http
│   ├── 504.http
│   └── README
├── haproxy.init
├── option-http_proxy.cfg
├── socks4.cfg
├── transparent_proxy.cfg
└── wurfl-example.cfg

1 directory, 15 files

#创建自定义的配置文件
[root@centos7 ~]# mkdir  /etc/haproxy
[root@centos7 ~]# vim /etc/haproxy/haproxy.cfg
global
    maxconn 100000
    chroot /apps/haproxy
    stats socket /var/lib/haproxy/haproxy.sock mode 600 level admin
    #uid 99
    #gid 99
    user  haproxy
    group haproxy
    daemon
    #nbproc 4
    #cpu-map 1 0
    #cpu-map 2 1
    #cpu-map 3 2
    #cpu-map 4 3
    pidfile /var/lib/haproxy/haproxy.pid
    log 127.0.0.1 local2 info

defaults
    option http-keep-alive
    option  forwardfor
    maxconn 100000
    mode http
    timeout connect 300000ms
    timeout client  300000ms
    timeout server  300000ms

listen stats
    mode http
    bind 0.0.0.0:9999
    stats enable
    log global
    stats uri     /haproxy-status
    stats auth    haadmin:123456

listen  web_port
    bind 10.0.0.7:80
    mode http
    log global
    server web1  127.0.0.1:8080  check inter 3000 fall 2 rise 5

启动haproxy

[root@centos7 ~]# mkdir  /var/lib/haproxy
#[root@centos7 ~]# chown  -R 99.99 /var/lib/haproxy/
[root@centos7 ~]# useradd -r -s /sbin/nologin -d /var/lib/haproxy haproxy
[root@centos7 ~]# systemctl  enable --now haproxy

验证haproxy状态

haproxy.cfg文件中定义了chroot、pidfile、user、group等参数,如果系统没有相应的资源会导致haproxy无法启动,具体参考日志文件 /var/log/messages

[root@centos7 ~]#systemctl status haproxy
● haproxy.service - HAProxy Load Balancer
   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; disabled; vendor preset: disabled)
   Active: active (running) since Mon 2020-03-30 20:45:20 CST; 4min 45s ago
  Process: 1362 ExecStartPre=/usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -c -q (code=exited, status=0/SUCCESS)
 Main PID: 1363 (haproxy)
   CGroup: /system.slice/haproxy.service
           ├─1363 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid
           └─1366 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid

Mar 30 20:45:20 centos7.wangxiaochun.com systemd[1]: Starting HAProxy Load Balancer...
Mar 30 20:45:20 centos7.wangxiaochun.com systemd[1]: Started HAProxy Load Balancer.
Mar 30 20:45:20 centos7.wangxiaochun.com haproxy[1363]: [NOTICE] 089/204520 (1363) : New worker #1 (1366...ked
Mar 30 20:45:20 centos7.wangxiaochun.com haproxy[1363]: [WARNING] 089/204520 (1366) : Server web_port/we...ue.
Mar 30 20:45:20 centos7.wangxiaochun.com haproxy[1363]: [ALERT] 089/204520 (1366) : proxy 'web_port' has...le!
Hint: Some lines were ellipsized, use -l to show in full.

[root@centos7 ~]# pstree -p |grep haproxy
           |-haproxy(28101)---haproxy(28105)

查看haproxy的状态页面

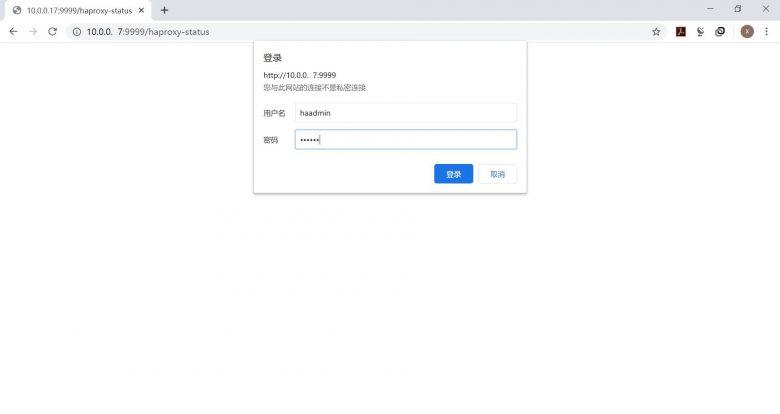

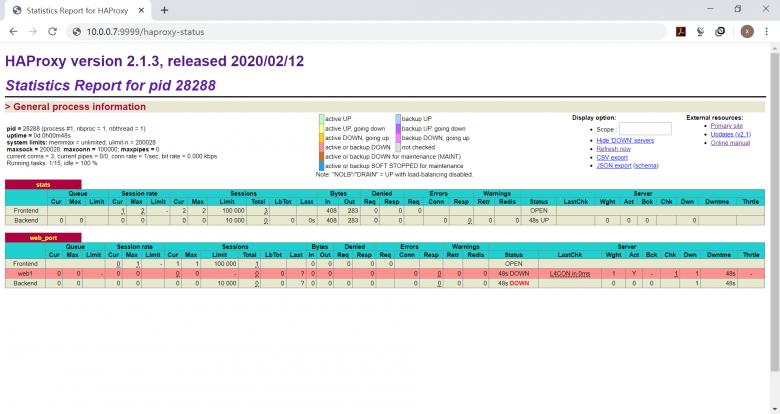

浏览器访问:http://haproxy-server:9999/haproxy-status

HAProxy-编译安装插图(1)
HAProxy-编译安装插图(2)
